Cameras : Accessories : Bosch : SKU: NBN-63023-B


Manufacturer: Bosch

Part Number: NBN-63023-B

UPC: 0800549805698

Thinking of making a large purchase?

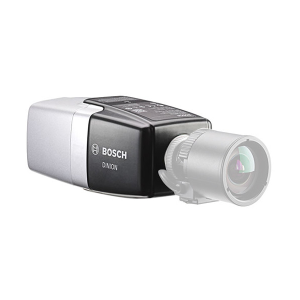

Bosch DINION IP Starlight 6000 1080p Hybrid Box Camera


Free shipping to 48 states


Estimated Delivery with free shipping by:

Sunday October 01th*

* If ordered today with free shipping.


  • The DINION IP Starlight 6000 1080p Hybrid Box Camera from Bosch
  • Captures 1080p HD images at up to 60 fps
  • The camera offers IP video and simultaneously outputs analog video via an SMB connector
  • Hybrid functionality offers a migration path from an analog CCTV to an IP-based surveillance system
  • The camera features a mechanical filter that allows it to capture images in mono
  • Illumination as low as 0.0008 lux and in color to 0.0069 lux
  • The filter can be switched remotely, or automatically via a light level sensor or contact input
  • Content Based Imaging Technology
  • Essential Video Analytics
  • Intelligent Dynamic Noise Reduction
  • Area-Based Encoding
  • Regions of Interest and E-PTZ
  • True Day/Night Switching
  • No Lens

  • Specification

    Analog Output Off, 4:3 letterbox, 4:3 crop, 16:9
    Application Variant: Starlight mode (default) / HDR - extended dynamic mode
    Color RAL 9007 Metallic titanium
    Data Port RS-232/422/485
    Dynamic Range High Dynamic Range: 120 dB WDR (10-bit, 3x exposure)
    Dynamic Range 110 dB WDR measured according to IEC 62676 Part 5
    Effective Pixels (H x V) 1920 x 1080; 2 MP approximately
    Ethernet 10/100Base-T, auto-sensing, half/full duplex
    Frame Rate Base 25/30/50/60 fps (PAL/NTSC for analog output)
    Image Flip On / Off
    Lens Connector Standard 4-pin DC-iris connector
    Lens Mount CS-mount (C-mount with adapter ring)
    Positioning Coordinates / mounting height
    Rotate 0/90/180/270°
    Sensor Type 1/2.8" CMOS
    Video Compression H.264 (MP); MJPEG

    In The Box

  • DINION IP Starlight 6000 1080p Hybrid Box Camera
  • Limited 3-Year Warranty
