Manufacturer: Tripp Lite

Part Number: SR45UBWD

UPC: 037332175038

Thinking of making a large purchase?

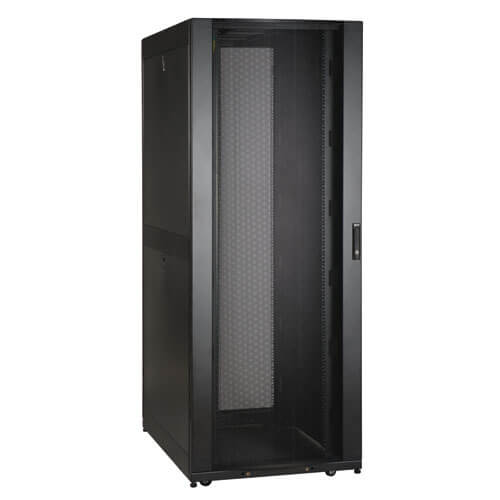

Tripp Lite 45U SmartRack Standard Rack Enclosure Cabinet


Free shipping to 48 states


Estimated Delivery with free shipping by:

Backordered - ETA Unknown

* If ordered today with free shipping.


  • 45U SmartRack enclosure with doors and side panels
  • 4 interior vertical posts with unthreaded square hole openings
  • 30" (750mm) width for optimizing airflow through cabinet
  • Standard 42" (1050mm) depth
  • Ships fully assembled
  • Massive front to rear ventilation capacity
  • 3000 lb stationary / 2250 lb rolling load capacity
  • Locking, removable, reversible front and rear doors
  • Locking, removable side panels keyed alike with doors
  • Meets all enclosure requirements towards PCI DSS Compliance
  • 5-year limited warranty

  • Specification

    Approvals EIA/ECA-310-E
    Built-in Cable Management Yes
    Certifications UL60950; RoHS; CE; IP20 Protection Rating
    Color Black
    Extra Wide Yes
    Factory Preset Rack Depth (in.) 27.75
    Grounding Lug Front and Back door frames
    Maximum Device Depth (in.) 37
    Minimum Device Depth (in.) 4
    Rack Depth Standard
    Rack Height 45U
    Rack Type Enclosure
    Shipping Dimensions (hwd / in.) 90.30 x 31.00 x 45.00
    Shipping Weight (lbs.) 390.00
    Unit Dimensions (hwd / in.) 83.75 x 29.53 x 43
    Unit Weight (lbs.) 340
    Warranty 5-year limited
    Weight Capacity - Rolling (lbs.) 2250
    Weight Capacity - Stationary (lbs.) 3000

    In The Box

  • 45U SmartRack Cabinet
  • (4) Side panels, (4) Side panel locks
  • (2) Door & side panel keys, (50) M6 screws
  • (50) M6 cage nuts, (50) M6 washers
  • Owner's Manual
