Network : Adapters : PCI Express : SKU: SAS3801E


Manufacturer: Broadcom

Part Number: SAS3801E

UPC: 0744890663876

Thinking of making a large purchase?

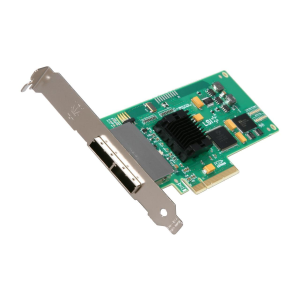

Broadcom LSI PCI Express x8 SAS/SATA Adapter


Free shipping to 48 states


Estimated Delivery with free shipping by:

Backordered - ETA Unknown

* If ordered today with free shipping.


  • The LSI SAS3801E PCI Express x8 SAS/SATA Adapter from PROAVIO is a controller card
  • Can host up to 8 SATA II devices
  • The card features 2 external SFF-8088 connectors for device connectivity
  • It is intended for use with hard drive enclosures by PROAVIO
  • Supports 8 SATA II drives via SFF-8088 connectors
  • Hosts up to 122 SAS and SATA devices
  • 3Gb/s bandwidth per port
  • PCI Express x8 interface
  • Low-profile form factor
  • Windows and Linux compatibility

  • Specification

    Channels 8x
    Connectors 2x SFF-8088
    Data Transfer Rate 300MB/sec per port
    Device Support SATA, SATA II
    Hardware PCI Express x8 slot
    Host Connection Type PCI Express x8
    Hot Swap Support Yes
    Interface Protocol SAS, SATA 3Gb/s
    Maximum Cable Length 6' (2 m)
    Power Bus-powered

    In The Box

  • LSI PCI Express x8 SAS/SATA Adapter
  • Low-Profile Bracket
  • Driver CD
  • Quick Installation Guide
  • 3-Year Limited Warranty
