Network : Switches : 60-Port : SKU: MSN3420-CB2FC


Manufacturer: Mellanox

Part Number: MSN3420-CB2FC

UPC: 7290108484410

Thinking of making a large purchase?

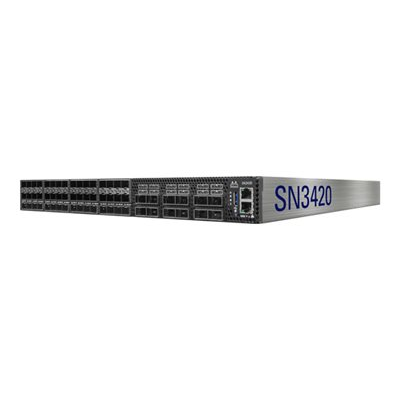

Mellanox Spectrum-2 Managed Switch - 60 ports


Free shipping to 48 states


Estimated Delivery with free shipping by:

Backordered - ETA Unknown

* If ordered today with free shipping.


  • As datacenter switching architectures increasingly adopt 100GbE
  • SN3420 offers a high-performance, cost-effective way to evolve host connectivity from 10G to 25G
  • Equipped with 48 ports of 10/25GbE and 12 ports of up to 100GbE in a compact 1U form factor
  • The SN3420 is an ideal Top-of-Rack (ToR) switch platform
  • Delivering a total throughput of up to 4.8Tb/s with a processing capacity of 3.58Bpps
  • The SN3420 enables the seamless use of QSFP28 connections
  • For leaf-spine topology and future-proofing the data center

  • Specification

    Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x
    Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
    Dimensions (WxDxH) 16.9 in 1.7 in
    Enclosure Type Back to front airflow rack-mountable 1U
    Performance Throughput: 4.8 Tbps ¦ Latency: 425 ns ¦ Packets per second: 3.58 Bpps
    Ports 48 x 25 Gigabit SFP28 + 12 x 100 Gigabit QSFP28
    Power AC 120/230 V (50/60 Hz)
    Power Redundancy Yes
    Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, CLI
    Subtype 100 Gigabit Ethernet

    In The Box

  • Spectrum-2 Managed Switch - 60 ports
